Brand Name : Hh
Model Number : 1200*2600mm
Certification : CE
Place of Origin : CHINA
MOQ : 1
Price : negotiated
Payment Terms : T/T, L/C
Supply Ability : 5 set every month
Delivery Time : 30-60 days
Packaging Details : plastic
name : High Speed Automatic Flexo Printer Slotter Die Cutter Machine
automatic grade : automatic
warranty : 1 year
speed : 150-200pcs/min
function : printer and make the carton box
After-sales service provided : Field maintenance and repair service, Field ins
Application : corrugated carton box
Color : one two three four five
cardboard thickness : 2-18mm
Voltage : 380v/50hz 220v/60hz
Core Components : Motor, PLC, Engine
max. depth of slot : 240mm
Flexo Corrugated Carton Box Printer Slotter Die Cutter Machine
a. It adopts centralized computer control and servo independent drive; it can connect to the whole plant ERP management system.
b. A safety emergency protection switch is set between the operation surface and the unit, and the moving button is prohibited for each unit.
c. The PLC program controls the servo drive to ensure the stability and reliability of the operating data.
d. The whole machine has multiple touch screen controls, which can store common orders, and it is more convenient and quick to change orders.
Mode | 920 | 1224 | 1425 | 1628 |
Max.Mechanical Speed | 320 | 260 | 180 | 160 |
Max.Feeding Size(L*Wmm) | 900x2050 | 1200x2500 | 1400x2600 | 1600x2900 |
Milimum Feeding Size(L*Wmm) | 280x600 | 350x600 | 380x650 | 450x650 |
Alternate Sheet Feeding Size(mm) | 1100x2000 | 1500x2500 | 1700x2600 | 1900x2900 |
Max.Printing Area(mm) | 900x2000 | 1200x2400 | 1400x2500 | 1600x2800 |
Standard Plate Thickness(mm) | 7.2 | |||
Min.Slotting Spacing Of The Positioner(mm)axb | 150x150 | 160x160 | 160x160 | 160x160 |
Min.Slotting Space For Reverse Cutter(mm)axb | 240x80 | 160x160 | 260x80 | 260x80 |
function and characteristic
1) Four rows wheels type lead edge feeding system , easy operation , high precision.
2) The lead edge wheels adopt Maxdura brand from Taiwan , durable Wear Resistant .
3) 7.5kw fan , air suction auxiliary paper feeding, according to the bending degree of the board, adjustable air volume to ensure smooth paper feeding. Variable frequency control the air volume .
1. Are you a factory or trading company? pay the 70% balance before delivery, but we can also accept the L/C. capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we will pick you up there. the very small thing(even a small screw we will choose the best quality) from the beginning. |
![]() |

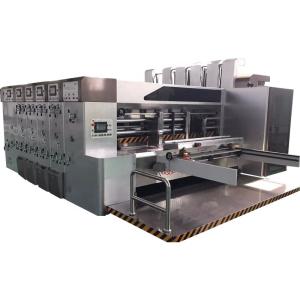

Slot Depth 240mm Flexo Printer Slotter Die Cutter Machine Corrugated Cardboard Images |
